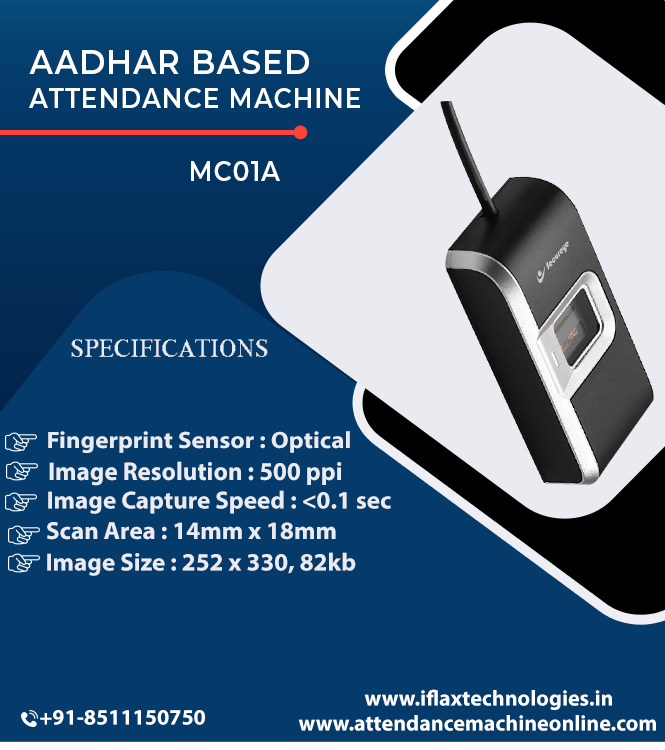

MC01A

Description

Technical Specifications
• Fingerprint Sensor: Optical Sensor
• Image Resolution: 500 ppi
• Image Capture Speed: <0.1 sec
• Scan Area: 14mm x 18mm
• Image Size: 252 x 330, 82kb
• Template Size: 2kb
• Image Format: ISO 19794-4, ANSI-378
• Template Format: ISO 19794-2, ANSI-378
• ESD Resistance: Air 9kv, Contact 4Kv
• Operating Temperature: -10 ~ 50 degree celsius
• Dimension: 82.3mm x 42.2 mm x 20.0 mm
• Weight: 70g
• Cable Length: 1m
• Certification: STQC Level 0, CE, FCC, WEEE, RoHS, BIS
