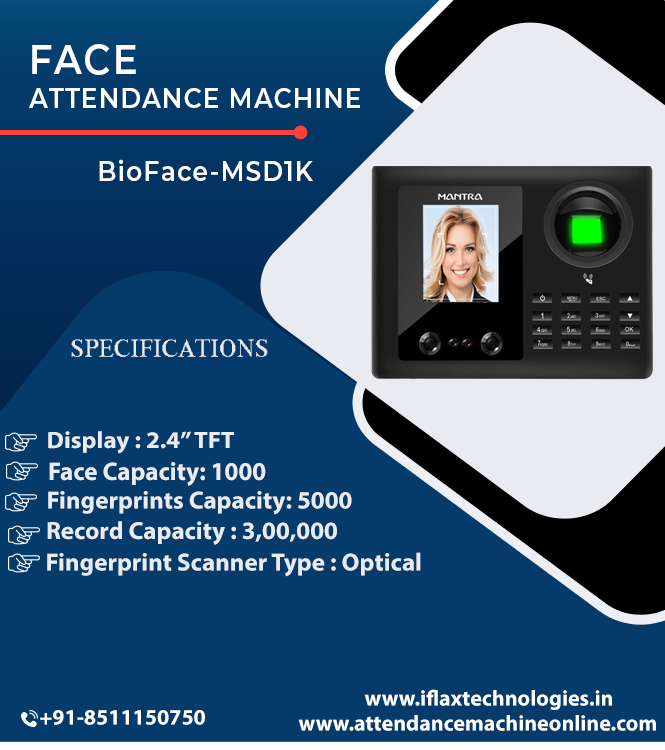

BioFace MSD1K
Description
Body
• Display: 2.4†TFT
• Keypad: Yes
• Schedule Bell/Speaker: Mini Speaker
Functionality
• Transaction storage: 100000
• Fingerprint sensor (Biometric systems): 500 DPI Optical sensor
• Identification speed: <0.5 sec
• Face capacity: 1000
• Fingerprints templates: 5000
• ID card storage: 1000
• Push Data : Yes
Technical Specification
• Communication: TCP/IP, RS232/485, USB Host
• FRR: <=1%
• FAR : <=0.0001%
• Finger placement angle: 360° rotation allowed
• Power supply: 12V: 3A
• Card Reader: Inbuilt proximity card reader
• Temperature: 0 °C- 45 °C
• Wiegand Signal: Output
• Battery backup: 2000mAH
• Humidity: 20% - 80%
Accessories
• Wiring Connections: Electric Lock
• Accessories : Power Adapter, USB Cable
Misc.
• Compatible Software and SDK: Desktop / Web or Cloud based software available; SDK for third party software will be provided based on the request.
• Optional Funcations: Mifare card, Wi-Fi, 3G
