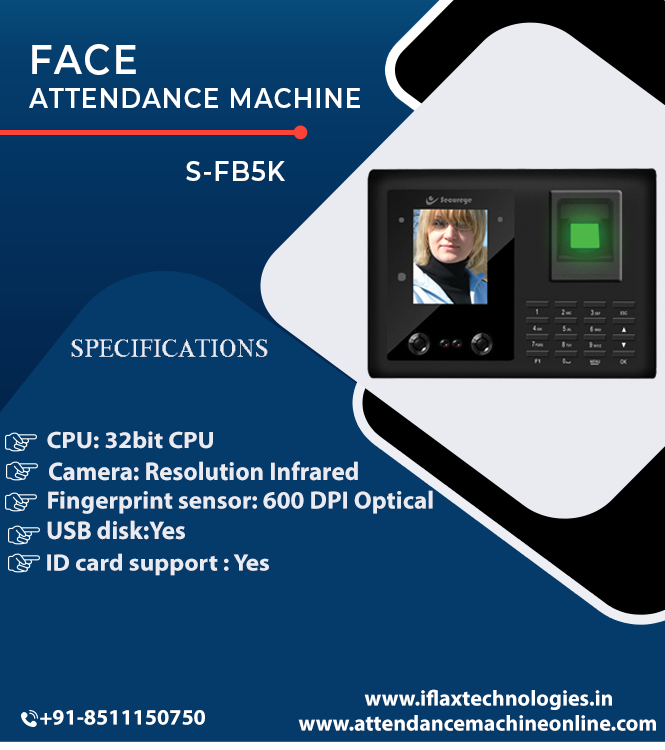

S-FB5K
Description
Technical Specifications
• CPU : 32bit CPU
• Camera : Resolution Infrared Camera
• Fingerprint sensor : 600 DPI Optical sensor
• USB disk :Yes
• ID card support : Yes
• LCD :6.1cm (2.4) TFT LCD
• LED :1 (Red-Green dual color)
• Keyboard : 16 keys
• Communication interface : Standard with TCP/IP(10/100Mbps)
• Finger touch sensor : Yes
• Voice output :Yes
• RTC :Yes
• Face capacity :1000
• Fingerprint capacity : 5000
• Identify mode :Face / Fingerprint / Card / Password
• Door open function :Yes
• USB disk up/download :Yes
• FAR/ FRR (Fingerprint) :0.00001/ 0.1(%)
• Matching speed : ≤1.0 second (enrolled 5000 finger)
• Log record :300000
• Allowable finger rotation :360° (all direction)
• Intelligent adaptation : Yes
• FP identification mode :1:N
• FAR/ FRR (Face) : 0.001/ 1(%) sec
• Face identify speed : ≤ 1.5 sec
• Face intelligent adaptation : Support
• Face matching mode : 1:N
• Operating voltage : DC 5V 5%(current : below 0.7A)
• Battery backup : Yes (Optional)
• Humidity(RH) :20% ~ 80%
• Temperature : -10°C ~ 60°C
