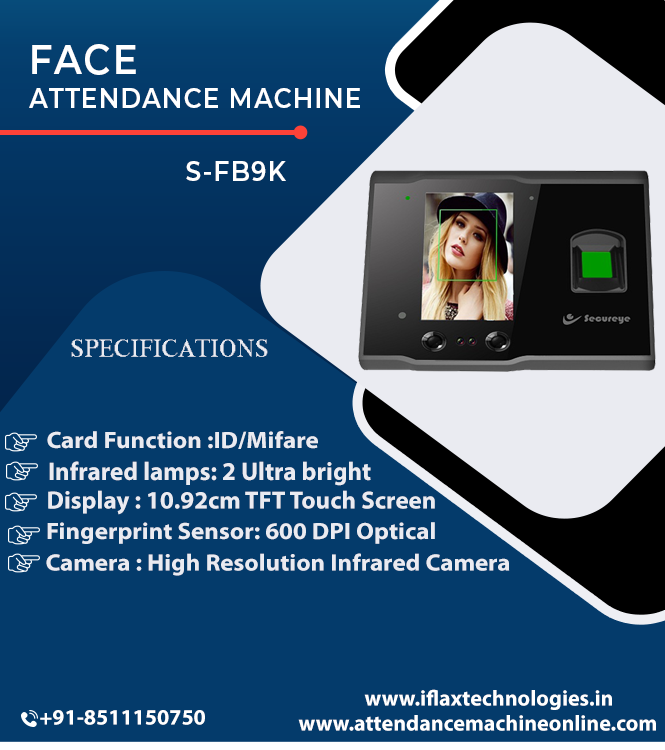

S-FB9K

Description

Technical Specification

• Camera: High Resolution Infrared Camera
• Infrared Lamp: 2 Ultra bright lamp
• Fingerprint sensor: 600 DPI Optical sensor
• Card Function :ID Card/Mifare card (optional)
• Display Screen : 10.92cm (4.3) TFT Touch Screen
• Touch Key : 16Keys (Have Back Light)
• Real Time clock display: Yes(with battery backup)
• LED Lamp : 1 LED Red & Green (Dual Color)
• Input Port : Wiegand 26/34 (can be external card reader module)
• Professional Access Control: Yes
• Communication: TCP/IP, RS232/485, 2 USB Host
• U disk port : Yes(notice: Only support FAT32 file system)
• Voice output : Audio message for transaction status (successful/unsuccessful) successful/unsuccessful
• Display Message : Successful / unsuccessful transaction status,realtime clock & date, functional key instruction
• Operating System : LINUX VER 3.6.5
• Face capacity: 1500 / 3000
• Fingerprint capacity : 15000 (Optional: 20K & 50K)
• User Log : 300,000
• Access Control : Access control function and optional access / time zone management, Anti-submarien/duress alarm function
• Attendance function: Yes
• Power management: sleep function
• U disk : upload/download yes
• Registration : Information & record
• Algorithm version : Face 7.0/finger 10.0
• FAR/FRR : 0.01% / 1%
• Verification speed :<= 2 sec.
• Updating : Intelligent Updating function
• Face I.d Mode Support : 1:N or 1:1
• Battery Backup : Upto 8hrs (optional)
• Working Temperature : 0°C ~ 50°C
• Working Humidity : 20% ~ 80%
• Power Consumption : 9V/12V
