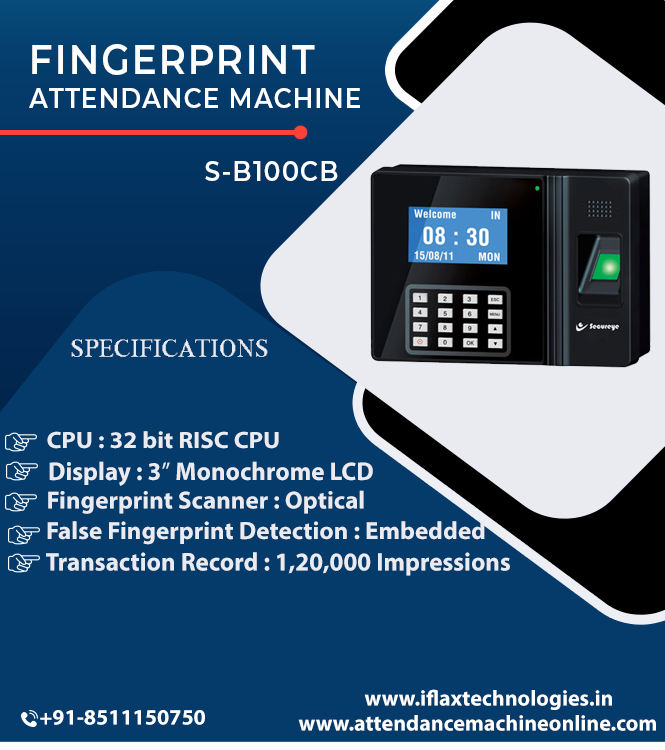

S-B100CB
Description
Technical Specification
• CPU: 32 bit RISC CPU
• Display: 3″ Monochrome LCD
• Fingerprint Scanner: High Resolution Optical (600dpi)
• False Fingerprint Detection: Embedded
• Transaction Record : 1,20,000 Impressions
• Users : 2000 Card/Finger/Password
• Authentication Mode: Fingerprint, Password, Proximity Card
• Instruction: Voice Guided
• Communication Mode: TCP/IP/ & USB
• FAR & FRR: IEEE 802.2, Ethernet TCP/IP
• Speed Mode: IEEE 802.2, Ethernet TCP/IP
• Authentication Angle: 360°
• Data Backup Support: USB
• Authentication OSD: Person Name and ID display
• Synchronization: Automatic Server to Device Synchronized
• Weigned: In & Out Supported
• Data Transmission: Online or Offline
• Lock Control: Supported
• Proximity Card Reader: Built-in
• Optional Features: Web Server, WiFi, 3G/GPRS, Anti-passback, Mifare (Smart Card)/HID Card Reader
• Temperature Humidity: -10°C ~ 60°C lower then 90% RH
• Source of Power: DC 9V/12 V
• Power Backup: Up to 4 Hours
• Certification: CE & FCC
