S-B50CB
Description

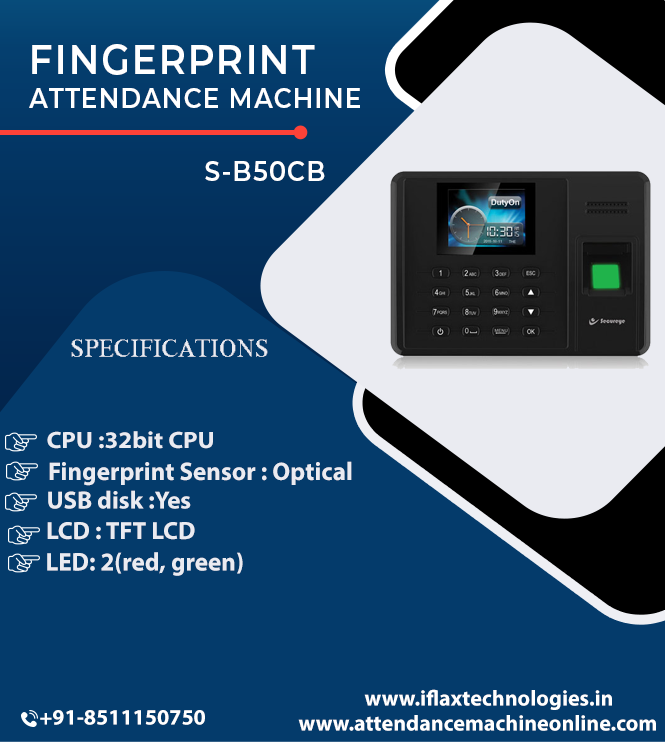

Description: IP(Ethernet & USB) Fingerprint Biometric Device
• 2.4″ Color LCD Display
• 1000 User Capacity
• 100,000 Log Capacity
• 600 dpi Optical Sensor
• Communication: TCP-IP & USB
• Identification Modes: Fingerprint
Technical Specification
• CPU: 32bit CPU
• Fingerprint sensor: High Resolution Optical (600dpi)
• USB disk :Yes
• LCD : TFT LCD
• LED: 2(red, green)
• Keyboard: 16 keys(have back light)
• Communication interface: USB/TCPIP(10/100Mbps, option)
• Finger touch sensor: Yes
• Voice output: Yes
• RTC: Yes
• User capacity: 1000finger+1000pin
• Identify mode: FP, Password and its combinations
• USB disk : USB disk up/download (enroll data, log)
• FAR/ FRR: 0.00001/ 0.1(%)
• Matching speed : ≦0.8s(In case of 1000 fingerprints)
• Allowable finger rotation: 360°(all direction)
• Adaptation function: Intelligent adaptation function
• identification : FP Identification mode 1N
• Operating voltage: DC 5V
• Humidity(RH): 20% ~ 80%
• Temperature: -10°C ~ 60°C
