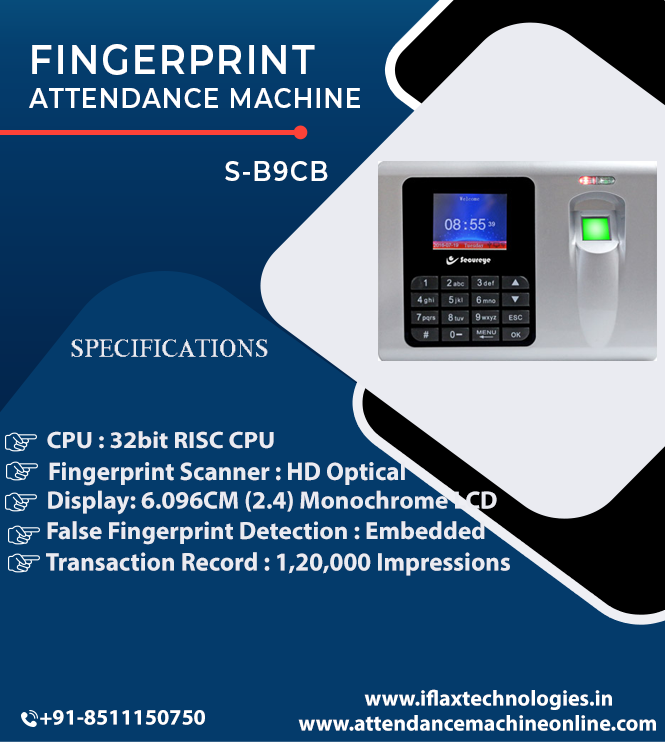

S-B9CB

Description

Description : IP (Ethernet & USB) Fingerprint Biometric Device
• 6.096CM (2.4) Color LCD
• User Capacity: 1000 Finger, 1000 Card & 1000 Password
• Transaction Record: 1,20,000 Impression
• In-built Proximity Reader
• Access Control : Basic

TECHNICAL SPECIFICATIONS
• CPU : 32bit RISC CPU
• Display :6.096CM (2.4) Monochrome LCD
• Fingerprint Scanner : High Resolution Optical (600dpi)
• False Fingerprint Detection : Embedded
• Transaction Record : 1,20,000 Impressions
• USER : 1000 Finger, 1000 Card and 1000 Password
• Authentication Mode : Fingerprint, Password, RFID Card & Combination
• Instruction Voice : Guided
• Communication Mode : TCP/IP/ & USB
• FAR & FRR : 0.0001% & 0.01% max
• Speed Mode : IEEE 802.2, Ethernet TCP/IP
• Authentication Angle : 360°
• Data Backup Support : USB
• Excel Report : Direct From USB
• Synchronization : Server to Device Synchronized
• Data Transmission : Online or Offline
• Proximity Card : Reader Built-in
• Wiegand In : No
• Temperature Humidity : -10°C ~ 60 °C lower then 90% RH
• Source of Power : DC 5V /12V
• Power Backup : Upto to 4 Hours
• Certification : CE & FCC
